From GRP to SVG : How to by programming

We saw in the previous chapter how to apply transformation from command line. In this chapter, we will explain how to apply transformation by programming.

1. What is needed

You still need the following things :

your GRP document,
the Definitions document,
and the SVG DTD or Schema.

2. Example 1

2.1. First step

In this first step, we will code the example to set up the main architecture. During the second step, we will really build the list of paramaters needed by the Transformer.

2.1.1. Code

Save the following code under editor/test/GRPToSVGTest.java :

    import fr.loria.taxi.transformer.TransformerGRPToSVG;
    import fr.loria.taxi.transformer.util.GRPToSVGParameters;


    public class GRPToSVGTest {
      /**
       * This method prepares the parameters needed by the process of transformation. If any
       * error happens, we display an error message and leave the application.
       *
       * @return The list of parameters as an GRPToSVGParameters object.
       */
      public static GRPToSVGParameters getParameters() {
        GRPToSVGParameters parameters = null;

        try {
          // The array containing the parameters
          String[] args = new String[0];

          // HERE WE SHOULD FILL IN THE args ARRAY WITH THE LIST OF PARAMETERS AND THEIR VALUE

          parameters = new GRPToSVGParameters(args);
        } catch (Exception e) {
          // We report any error that might happen with the parameters and leave the application
          System.err.println("-- Something wrong with the parameters --");
          System.err.println(e.getMessage());
          System.exit(1);
        }

        return parameters;
      }


      /**
       * Main method.
       */
      public static void main(String[] args) {
        try {
          // Prepares the list of parameters
          GRPToSVGParameters parameters = getParameters();

          // Creates the Transformer and calls the process() method that operates the process
          // of transformation
          new TransformerGRPToSVG(parameters).process();

          // We force the exit of the application because an instance of an AWT object has been
          // created during the process of transformation, thus, the system doesn't relinquish
          // control as it assumes that some GUI is running.
          System.exit(0);
        } catch (Exception e) {
          // We report any error that might happen during the process of transformation
          System.err.println("-- Something wrong happened during the transformation --");
          System.err.println(e.getMessage());
        }
      }
    }

Open a console, go to directory editor/test and compile GRPToSVGTest.java with the following command :

    javac -classpath ../lib/taxi.jar GRPToSVGTest.java

For compiling, you must specify the jar containing the classes transformer.TransformerGRPToSVG and import fr.loria.taxi.transformer.util.GRPToSVGParameters imported at the very top of your code. These 2 classes are contained in the jar taxi.jar (in directory lib) shipped with TAXI.

Note : classes and sources are usually not saved in the same directory. This is not the case with the previous command line used for compiling. I chose to do that to focus only on the process of transformation and use the minimum number of necessary options on the command line.

2.1.2. Explaining the code

You must import 2 classes :

transformer.TransformerGRPToSVG : the Transformer used to apply the transformation,
transformer.util.GRPToSVGParameters : holds the parameters passed to the Transformer.

The method main(String[] args) does 2 things :

prepares the GRPToSVGParameters object by calling the method getParameters(),
instanciates the TransformerGRPToSVG (the constructor takes a GRPToSVGParameters object as parameter) and applies the tranformation by calling the method process() on that object.

A try catch block encloses this code as Exception may be thrown during the transformation.

We wrote a method called getParameters() to prepare the GRPToSVGParameters object that holds the different parameters and their respective value. In this method, we instanciate a GRPToSVGParameters object (the constructor takes an array of String objects that represents the transformation process' parameters and their value). We didn't specify yet the list of parameters in that array of String. We are going to do that in the Second step.

The creation of the GRPToSVGParameters is enclosed in a try catch block as it may throw Exception if something is wrong with the arrays of String representing the transformation process' parameters and their value. In such a case, we display an error message and stop the application.

The lines in bold in the code above are very important. When the process of transformation ends successfully, the Java Virtual Machine does not relinquish control, thus, we force the application to end with System.exit(0);. Why does not the Java Virtual Machine relinquish control ? Because an instance of a java.awt.Label may have been created by the class grp.FinalBoxTextContent to compute the size of the string contained by a tbox (a text box of the GRP document). Then, the Java Virtual Machine assumes that some GUI is running and keeps turning even when the end of the method main(String[] args) is reached.

2.1.3. Running the code

Run the example with this command (depending on the OS you run it, you will not use the same classpath separator) :

    java -classpath ../lib/taxi.jar;. GRPToSVGTest (under Windows)
    java -classpath ../lib/taxi.jar:. GRPToSVGTest (under other OS)

You get the following output :

    -- Something wrong with the parameters --
    Parameter 'defs' is missing.

In the method getParameters(), we got an Exception because, so far, the object GRPToSVGParameters is created with an empty array. We intercepted this Exception, showed its message, and left the application.

2.2. Second step

We will now complete the previous example by adding parameters to transform a GRP document shipped with TAXI : editor/XML/XML/ex1.cd.grp.

2.2.1. Code

Modify editor/test/GRPToSVGTest.java (changes are indicated in bold) :

    import fr.loria.taxi.transformer.TransformerGRPToSVG;
    import fr.loria.taxi.transformer.util.Parameters;
    import fr.loria.taxi.transformer.util.GRPToSVGParameters;


    public class GRPToSVGTest {
      /**
       * This method prepares the parameters needed by the process of transformation. If any
       * error happens, we display an error message and leave the application.
       *
       * @return The list of parameters as an GRPToSVGParameters object.
       */
      public static GRPToSVGParameters getParameters() {
        GRPToSVGParameters parameters = null;

        try {
          // The array containing the parameters
          String[] args = new String[6];

          // GRP document to transform
          args[0] = Parameters.PARAMETER_SIGN + Parameters.GRP_IN;  // -grp_in
          args[1] = "../XML/XML/ex1.cd.grp";

          // Definitions document to use
          args[2] = Parameters.PARAMETER_SIGN + Parameters.DEFS;    // -defs
          args[3] = "../XML/XML/definitionsCD.def";

          // SVG DTD
          args[4] = Parameters.PARAMETER_SIGN + Parameters.SVG_DTD; // -svg_dtd
          args[5] = "../svg.dtd";

          parameters = new GRPToSVGParameters(args);
        } catch (Exception e) {
          // We report any error that might happen with the parameters and leave the application
          System.err.println("-- Something wrong with the parameters --");
          System.err.println(e.getMessage());
          System.exit(1);
        }

        return parameters;
      }


      /**
       * Main method.
       */
      public static void main(String[] args) {
        try {
          // Prepares the list of parameters
          GRPToSVGParameters parameters = getParameters();

          // Creates the Transformer and calls the process() method that operates the process
          // of transformation
          new TransformerGRPToSVG(parameters).process();

          // We force the exit of the application because an instance of an AWT object has been
          // created during the process of transformation, thus, the system doesn't relinquish
          // control as it assumes that some GUI is running.
          System.exit(0);
        } catch (Exception e) {
          // We report any error that might happen during the process of transformation
          System.err.println("-- Something wrong happened during the transformation --");
          System.err.println(e.getMessage());
        }
      }
    }

Open a console, go to directory editor/test (if not already done) and compile GRPToSVGTest.java with the following command :

    javac -classpath ../lib/taxi.jar GRPToSVGTest.java

2.2.2. Explaining the code

We imported a new class, transformer.util.Parameters, since we will use predefined constants of this class in method getParameters().

Array args is now created in order to contain 6 String.

Parameters are stored in args like this :

args[i] : contains the name of the parameter,
args[i + 1] : contains the value of the parameter,

We used predefined constants to build the name of the parameters. You could have used the litteral string written in comment on the same line to produce an equivalent effect.

The path of our 3 parameters is given as relative. For parameters -grp_in and -defs, path is relative to where the application will be launched ( editor/test). For parameter -svg_dtd, path is given relative to the GRP document to transform (editor/XML/XML/ex1.cd.grp).

As we used relative paths, the location from where the application is launched is very important. If we had used absolute path instead, the application could have been launched from anywhere.

2.2.3. Running the code

Run the example with this command (depending on the OS you run it, you will not use the same classpath separator) :

    java -classpath ../lib/taxi.jar;. GRPToSVGTest (under Windows)
    java -classpath ../lib/taxi.jar:. GRPToSVGTest (under other OS)

You get the following output :

    Parsing file ../XML/XML/definitionsCD.def
    Parsing file ../XML/XML/ex1.cd.grp
    Creating SVG document
    Generating SVG file ../XML/XML/ex1.cd.svg

Document editor/XML/XML/ex1.cd.svg has been generated and looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>

3. Example 2

In this example, based on example 1, we will use an XML parameter document and override some values.

3.1. Code

Modify editor/test/GRPToSVGTest.java (changes are indicated in bold) :

    import fr.loria.taxi.transformer.TransformerGRPToSVG;
    import fr.loria.taxi.transformer.util.Parameters;
    import fr.loria.taxi.transformer.util.GRPToSVGParameters;


    public class GRPToSVGTest {
      /**
       * This method prepares the parameters needed by the process of transformation. If any
       * error happens, we display an error message and leave the application.
       *
       * @return The list of parameters as an GRPToSVGParameters object.
       */
      public static GRPToSVGParameters getParameters() {
        GRPToSVGParameters parameters = null;

        try {
          // The array containing the parameters
          String[] args = new String[4];

          /*
          // GRP document to transform
          args[0] = Parameters.PARAMETER_SIGN + Parameters.GRP_IN;  // -grp_in
          args[1] = "../XML/XML/ex1.cd.grp";

          // Definitions document to use
          args[2] = Parameters.PARAMETER_SIGN + Parameters.DEFS;    // -defs
          args[3] = "../XML/XML/definitionsCD.def";

          // SVG DTD
          args[4] = Parameters.PARAMETER_SIGN + Parameters.SVG_DTD; // -svg_dtd
          args[5] = "../svg.dtd";
          */

          // XML parameter document
          args[0] = Parameters.PARAMETER_SIGN + Parameters.XML;            // -xml
          args[1] = "../XML/XML/parametersCD.xml";

          // Output SVG DTD
          args[2] = Parameters.PARAMETER_SIGN + Parameters.SVG_DTD_OUTPUT; // -svg_dtdoutput
          args[3] = "relative";

          parameters = new GRPToSVGParameters(args);
        } catch (Exception e) {
          // We report any error that might happen with the parameters and leave the application
          System.err.println("-- Something wrong with the parameters --");
          System.err.println(e.getMessage());
          System.exit(1);
        }

        return parameters;
      }


      /**
       * Main method.
       */
      public static void main(String[] args) {
        try {
          // Prepares the list of parameters
          GRPToSVGParameters parameters = getParameters();

          // Creates the Transformer and calls the process() method that operates the process
          // of transformation
          new TransformerGRPToSVG(parameters).process();

          // We force the exit of the application because an instance of an AWT object has been
          // created during the process of transformation, thus, the system doesn't relinquish
          // control as it assumes that some GUI is running.
          System.exit(0);
        } catch (Exception e) {
          // We report any error that might happen during the process of transformation
          System.err.println("-- Something wrong happened during the transformation --");
          System.err.println(e.getMessage());
        }
      }
    }

Open a console, go to directory editor/test (if not already done) and compile GRPToSVGTest.java with the following command :

    javac -classpath ../lib/taxi.jar GRPToSVGTest.java

3.2. Explaining the code

In method getParameters(), we specified the use of an XML parameter document which is editor/XML/XML/parametersCD.xml.

We overrided the value contained in the XML parameter document for parameter svg_dtdoutput : it will be relative.

3.3. Running the code

Save the following code under editor/XML/XML/parametersCD.xml (absolute paths may be different on your machine, please adapt the code) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">
    <parameters>
      <grp_in>D:/editor/XML/XML/ex1.cd.grp</grp_in>
      <defs>D:/editor/XML/XML/definitionsCD.def</defs>
      <svg_dtd output="absolute">D:/editor/XML/svg.dtd</svg_dtd>
    </parameters>

Run the example with this command (depending on the OS you run it, you will not use the same classpath separator) :

    java -classpath ../lib/taxi.jar;. GRPToSVGTest (under Windows)
    java -classpath ../lib/taxi.jar:. GRPToSVGTest (under other OS)

You get the following output :

    Parsing file D:/editor/XML/XML/definitionsCD.def
    Parsing file D:/editor/XML/XML/ex1.cd.grp
    Creating SVG document
    Generating SVG file D:/editor/XML/XML/ex1.cd.svg

Document editor/XML/XML/ex1.cd.svg has been generated and looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </grp>

You can see that the SVG DTD is indicated as relative in the intermediary document while it was asked to be absolute in the XML parameter document.

4. Example 3

In this example, based on example 2, we will use the debug mode.

4.1. Code

Modify editor/test/GRPToSVGTest.java (changes are indicated in bold) :

    import fr.loria.taxi.transformer.TransformerGRPToSVG;
    import fr.loria.taxi.transformer.util.Parameters;
    import fr.loria.taxi.transformer.util.GRPToSVGParameters;


    public class GRPToSVGTest {
      /**
       * This method prepares the parameters needed by the process of transformation. If any
       * error happens, we display an error message and leave the application.
       *
       * @return The list of parameters as an GRPToSVGParameters object.
       */
      public static GRPToSVGParameters getParameters() {
        GRPToSVGParameters parameters = null;

        try {
          // The array containing the parameters
          String[] args = new String[5];

          /*
          // GRP document to transform
          args[0] = Parameters.PARAMETER_SIGN + Parameters.GRP_IN;  // -grp_in
          args[1] = "../XML/XML/ex1.cd.grp";

          // Definitions document to use
          args[2] = Parameters.PARAMETER_SIGN + Parameters.DEFS;    // -defs
          args[3] = "../XML/XML/definitionsCD.def";

          // SVG DTD
          args[4] = Parameters.PARAMETER_SIGN + Parameters.SVG_DTD; // -svg_dtd
          args[5] = "../svg.dtd";
          */

          // XML parameter document
          args[0] = Parameters.PARAMETER_SIGN + Parameters.XML;            // -xml
          args[1] = "../XML/XML/parametersCD.xml";

          // Output SVG DTD
          args[2] = Parameters.PARAMETER_SIGN + Parameters.SVG_DTD_OUTPUT; // -svg_dtdoutput
          args[3] = "relative";

          args[4] = Parameters.PARAMETER_SIGN + Parameters.DEBUG;          // -debug

          parameters = new GRPToSVGParameters(args);
        } catch (Exception e) {
          // We report any error that might happen with the parameters and leave the application
          System.err.println("-- Something wrong with the parameters --");
          System.err.println(e.getMessage());
          System.exit(1);
        }

        return parameters;
      }


      /**
       * Main method.
       */
      public static void main(String[] args) {
        try {
          // Prepares the list of parameters
          GRPToSVGParameters parameters = getParameters();

          // Creates the Transformer and calls the process() method that operates the process
          // of transformation
          TransformerGRPToSVG transformer = new TransformerGRPToSVG(parameters);
          transformer.process();

          // Show the GRP document as a tree in a window
          transformer.viewGRPTreeModel();

          /*
          // We force the exit of the application because an instance of an AWT object has been
          // created during the process of transformation, thus, the system doesn't relinquish
          // control as it assumes that some GUI is running.
          System.exit(0);
          */
        } catch (Exception e) {
          // We report any error that might happen during the process of transformation
          System.err.println("-- Something wrong happened during the transformation --");
          System.err.println(e.getMessage());
        }
      }
    }

Open a console, go to directory editor/test (if not already done) and compile GRPToSVGTest.java with the following command :

    javac -classpath ../lib/taxi.jar GRPToSVGTest.java

3.2. Explaining the code

In method getParameters(), we indicated the use of the parameter -debug.

In method main(String[] args), when we create the Transformer, we keep a reference to it via the variable transformer. When the process of transformation is done, with the line of code transformer.viewGRPTreeModel();, we then ask a window to appear to display information about the GRP document (you can call this method even if you didn't use the debug mode to transform your GRP document).

In method main(String[] args), it is very important to comment the line System.exit(0);. If we don't comment it, then, as soon as the window containing the information about the GRP document appears, it will be closed. The closing of that window by the user will cause the application to exit.

3.3. Running the code

Document editor/XML/XML/parametersCD.xml stays the one we used for example 2.

Run the example with this command (depending on the OS you run it, you will not use the same classpath separator) :

    java -classpath ../lib/taxi.jar;. GRPToSVGTest (under Windows)
    java -classpath ../lib/taxi.jar:. GRPToSVGTest (under other OS)

You get the following output :

    Parsing file D:/editor/XML/XML/definitionsCD.def
    Parsing file D:/editor/XML/XML/ex1.cd.grp
    Creating SVG document
    Generating SVG file D:/editor/XML/XML/ex1.cd.svg

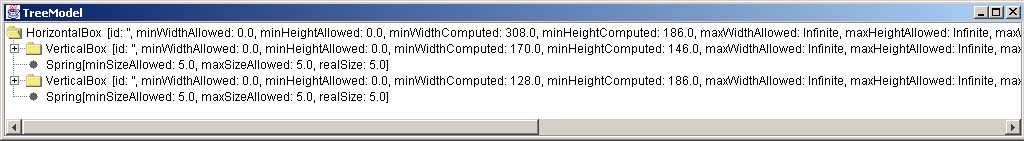

The following windows appears, it displays information about the intermediary document (after resizing) :

Document ex1.cd.svg looks like this under an SVG viewer (Batik may not display it correctly) :

5. List of parameters

The list of parameters you can use to construct the array args is exactly the same than the one you are allowed to use when transforming from a console :

Attribute name	Description	Allowed values	Default value	Mandatory
`-debug`	Enters in debug mode (the graphic shows the boxes and the springs, and information about the intermediary document is displayed).	This parameter accepts no value.	-	No
`-defs`	Specifies the Definitions document that contains the background definitions.	Relative or absolute path to any Definitions document.	-	Yes if `-xml` not used
`-grp_in`	Specifies the GRP document to transform.	Relative or absolute path to any GRP document.	-	Yes if `-xml` not used
`-height`	Specifies the height of the resulting graphic.	Any positive real. If you specify this parameter, you must specify the `-width` parameter too.	-	No
`-svg_dtd`	Specifies the SVG DTD (file name or URL). If you don't specify a value for this parameter, and if you don't use the parameter `-svg_schema`, it will be assumed that the file `svg.dtd` is present in the directory containing the XML document you intend to transform.	If a file, relative or absolute path, or a URL to SVG DTD.	-	No
`-svg_dtdoutput`	In the case the SVG Doctype is a file, specifies whether, inside the SVG document, path to SVG DTD is absolute or relative.	`absolute` or `relative`.	`absolute`	No
`-svg_dtdpublicID`	In the case the SVG Doctype is a URL, specifies the public ID of the Doctype.	Any possible string for a public ID.	-	No
`-svg_schema`	Specifies the SVG Schema (file name or URL).	If a file, relative or absolute path, or a URL to SVG Schema.	-	No
`-svg_schemanamespace`	Specifies the SVG Schema namespace. It must be the same than the namespace specified by the Schema you use.	Any valid value for a namespace.	-	No
`-svg_schemaoutput`	In the case the SVG Schema is a file, specifies whether, inside the SVG document, path to SVG Schema is absolute or relative.	`absolute` or `relative`.	`absolute`	No
`-svg_schemaxsi`	Specifies the SVG document namespace. Generally `http://www.w3.org/2001/XMLSchema-instance`.	Any valid value for a namespace.	`http://www.w3.org/2001/XMLSchema-instance`	No
`-xml`	Specifies the XML document containing all the parameters.	Relative or absolute path to the XML document.	-	Yes if `-xml_in` and `-xsl` not used
`-width`	Specifies the width of the resulting graphic.	Any positive real. If you specify this parameter, you must specify the `-height` parameter too.	-	No

Here is the list of constants defined by class transformer.util.Parameters that you can use to build the name of the parameters for transforming GRP to SVG :

Constant name	Constant value	Description
`DEBUG`	debug	Debug mode.
`DEFS`	defs	Definitions document to use.
`GRP_IN`	grp_in	GRP document to transform.
`PARAMETER_SIGN`	-	Minus sign placed in front of every parameter name.
`SVG_DTD`	svg_dtd	DTD of SVG document.
`SVG_DTD_OUTPUT`	svg_dtdoutput	Output type of SVG DTD (`relative` or `absolute`).
`SVG_DTD_PUBLIC_ID`	svg_dtdpublicID	Public ID of SVG DTD.
`SVG_SCHEMA`	svg_schema	Schema of SVG document.
`SVG_SCHEMA_NAMESPACE`	svg_schemanamespace	SVG Schema namespace. Must be the same than the namespace specified by the Schema you use.
`SVG_SCHEMA_OUTPUT`	svg_schemaoutput	Output type of SVG Schema (`relative` or `absolute`).
`SVG_SCHEMA_XSI`	svg_schemaxsi	SVG document namespace. Generally `http://www.w3.org/2001/XMLSchema-instance`.
`XML`	xml	XML document parameter.
