From XML to SVG : How to from a console

We will cover in this chapter the different ways you dispose to transform your XML document to the graphical document (SVG document) from a console.

This mode of transformation is used when XSLT stylesheets and definitions documents are correct.

1. What is needed

To transform your XML document to a SVG document, the Transformer needs the following things :

2. Passing parameters on the command line

2.1. Description

The class to instantiate is transformer.TransformerXMLToSVG.

The list of parameters is :

Attribute name Description Allowed values Default value Mandatory
-debug Enters in debug mode (the graphic shows the boxes and the springs, and information about the intermediary document is displayed). This parameter accepts no value. - No
-defs Specifies the Definitions document that contains the background definitions. Relative or absolute path to any Definitions document. - Yes
-grp_dtd Specifies the GRP DTD (file name or URL). If a file, relative or absolute path, or a URL to GRP DTD. - No
-grp_dtdoutput In the case the GRP Doctype is a file, specifies whether, inside the GRP document, path to GRP DTD is absolute or relative. absolute or relative. absolute No
-grp_dtdpublicID In the case the GRP Doctype is a URL, specifies the public ID of the Doctype. Any possible string for a public ID. - No
-grp_schema Specifies the GRP Schema (file name or URL). If you don't specify a value for this parameter, and if you don't use the parameter -grp_dtd, it will be assumed that the file grp.xsd is present in the directory containing the XML document you intend to transform. If a file, relative or absolute path, or a URL to GRP Schema. - No
-grp_schemanamespace Specifies the GRP Schema namespace. It must be the same than the namespace specified by the Schema you use. Any valid value for a namespace. - No
-grp_schemaoutput In the case the GRP Schema is a file, specifies whether, inside the GRP document, path to GRP Schema is absolute or relative. absolute or relative. absolute No
-grp_schemaxsi Specifies the GRP document namespace. Generally http://www.w3.org/2001/XMLSchema-instance. Any valid value for a namespace. http://www.w3.org/2001/XMLSchema-instance No
-height Specifies the height of the resulting graphic. Any positive real. If you specify this parameter, you must specify the -width parameter too. - No
-svg_dtd Specifies the SVG DTD (file name or URL). If you don't specify a value for this parameter, and if you don't use the parameter -svg_schema, it will be assumed that the file svg.dtd is present in the directory containing the XML document you intend to transform. If a file, relative or absolute path, or a URL to SVG DTD. - No
-svg_dtdoutput In the case the SVG Doctype is a file, specifies whether, inside the SVG document, path to SVG DTD is absolute or relative. absolute or relative. absolute No
-svg_dtdpublicID In the case the SVG Doctype is a URL, specifies the public ID of the Doctype. Any possible string for a public ID. - No
-svg_schema Specifies the SVG Schema (file name or URL). If a file, relative or absolute path, or a URL to SVG Schema. - No
-svg_schemanamespace Specifies the SVG Schema namespace. It must be the same than the namespace specified by the Schema you use. Any valid value for a namespace. - No
-svg_schemaoutput In the case the SVG Schema is a file, specifies whether, inside the SVG document, path to SVG Schema is absolute or relative. absolute or relative. absolute No
-svg_schemaxsi Specifies the SVG document namespace. Generally http://www.w3.org/2001/XMLSchema-instance. Any valid value for a namespace. http://www.w3.org/2001/XMLSchema-instance No
-width Specifies the width of the resulting graphic. Any positive real. If you specify this parameter, you must specify the -height parameter too. - No
-xml_in Specifies the XML document to transform. Relative or absolute path to any XML document. - Yes
-xsl Specifies the XSLT stylesheet that contains the rules of transformation to get the GRP document. Relative or absolute path to any XSLT stylesheet. - Yes

2.2. Examples

We will transform an existing XML document shipped with TAXI : editor/XML/XML/ex1.cd.

Note : these examples make the use of DTD only.

2.2.1. Example 1

For this first example, we will use the minimum required number of parameters.

Open a console and go to directory editor/XML/XML. Type the following command :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml_in ex1.cd -xsl CDtoGRP.xsl -grp_dtd ../grp.dtd -defs definitionsCD.def -svg_dtd ../svg.dtd


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp has been generated in directory editor/XML/XML. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg has been generated in directory editor/XML/XML too. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


2.2.2. Example 2

We will produce an absolute path for GRP DTD and a relative one for SVG DTD.

Open a console and go to directory editor/XML/XML. Type the following command (the absolute paths D:/editor/XML/grp.dtd and D:/editor/XML/svg.dtd are the ones I have to use on my Windows machine) :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml_in ex1.cd -xsl CDtoGRP.xsl -grp_dtd D:/editor/XML/grp.dtd -grp_dtdoutput absolute -defs definitionsCD.def -svg_dtd D:/editor/XML/svg.dtd -svg_dtdoutput relative


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "file:///D:/editor/XML/grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg has been generated in directory editor/XML/XML too. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


Note : if, on the command line, you specify a relative path like ../grp.dtd for parameter -grp_dtd then, inside GRP document, the path to GRP DTD will automatically be relative.

2.2.3. Example 3

We will use a URL as Doctype for both GRP and SVG documents.

Open a console and go to directory editor/XML/XML. Type the following command (URL file:///D:/editor/XML/grp.dtd is the one I have to use on my Windows machine) :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml_in ex1.cd -xsl CDtoGRP.xsl -grp_dtd file:///D:/editor/XML/grp.dtd -grp_dtdpublicID test -defs definitionsCD.def -svg_dtd http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd -svg_dtdpublicID -//W3C//DTD SVG 1.0//EN


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp PUBLIC "test"
                         "file:///D:/editor/XML/grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


And document ex1.cd.svg like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg PUBLIC "-//W3C//DTD"
                         "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


2.2.4. Example 4

We will specify the size of the resulting graphic.

Open a console and go to directory editor/XML/XML. Type the following command :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml_in ex1.cd -xsl CDtoGRP.xsl -grp_dtd ../grp.dtd -defs definitionsCD.def -svg_dtd ../svg.dtd -width 30 -height 30


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


And document ex1.cd.svg like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="30" preserveAspectRatio="xMidYMin" viewBox="0 0 308.0 186.0" width="30" x="0.0" y="0.0">
      ...
    </svg>


The graphic is really smaller (you will see the graphic bigger if you use Batik since attribute viewBox is ignored by Batik on the root tag) :

2.2.5. Example 5

We will use the debug mode.

Open a console and go to directory editor/XML/XML. Type the following command :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml_in ex1.cd -xsl CDtoGRP.xsl -grp_dtd ../grp.dtd -defs definitionsCD.def -svg_dtd ../svg.dtd -debug


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg

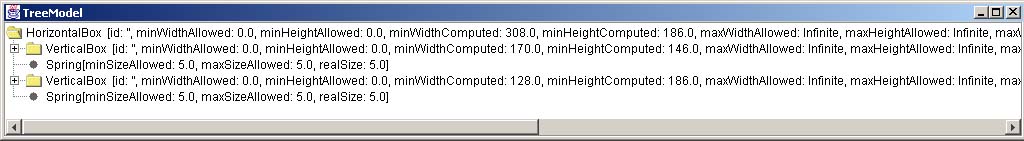

The following windows appears, it displays information about the intermediary document (after resizing) :

Document ex1.cd.svg looks like this under an SVG viewer (Batik may not display it correctly) :

3. Passing parameters through an XML parameter document

3.1. Description

The class to instantiate is still transformer.TransformerXMLToSVG.

The list of parameters is very short :

Attribute name Description Allowed values Default value Mandatory
-xml Specifies the XML document containing all the parameters. Relative or absolute path to the XML document. - Yes

The idea is that the XML document referred by the -xml parameter contains all the parameters necessary to the process of transformation.

It is highly recommemded to use the provided DTD editor/XML/parameters.dtd to rule the syntax of the XML parameter document, although it is not an obligation.

The XML parameter document must have parameters as root tag, and must contain the following tags, in that order :

Tag name Description Allowed values Default value Mandatory
xml_in Specifies the XML document to transform. Any XML document. - Yes
xsl Specifies the XSLT stylesheet that contains the rules of transformation to get the GRP document. Relative or absolute path to any XSLT stylesheet. - Yes
defs Specifies the Definitions document that contains the background definitions. Relative or absolute path to any Definitions document. - Yes
graphic This tag contains no value. It is only used to specify some options that affect the resulting graphic through this attributes' tag. None. - No
grp_dtd Specifies the GRP DTD (file name or URL). If a file, relative or absolute path, or a URL to GRP DTD. - No
grp_schema Specifies the GRP Schema (file name or URL). If you don't specify a value for this parameter, and if you don't use the parameter -grp_dtd, it will be assumed that the file grp.xsd is present in the directory containing the XML document you intend to transform. If a file, relative or absolute path, or a URL to GRP Schema. - No
svg_dtd Specifies the SVG DTD (file name or URL). If you don't specify a value for this parameter, it will be assumed that the file svg.dtd is present in the directory containing the XML document you intend to transform. If a file, relative or absolute path, or a URL to SVG DTD. - No
svg_schema Specifies the SVG Schema (file name or URL). If a file, relative or absolute path, or a URL to SVG Schema. - No

Some tags may have attributes :

Tag name Attribute name Description Allowed values Default value Mandatory
graphic height Specifies the height of the resulting graphic. Any positive real. - Yes
  width Specifies the width of the resulting graphic. Any positive real. - Yes
grp_dtd output In the case the GRP Doctype is a file, specifies whether, inside the GRP document, path to GRP DTD is absolute or relative. absolute or relative. absolute No
  publicID In the case the GRP Doctype is a URL, specifies the public ID of the Doctype. Any possible string for a public ID. - No
grp_schema namespace Specifies the GRP Schema namespace. It must be the same than the namespace specified by the Schema you use. Any valid value for a namespace. - No
  output In the case the GRP Doctype is a file, specifies whether, inside the GRP document, path to GRP DTD is absolute or relative. absolute or relative. absolute No
  xsi Specifies the GRP document namespace. Generally http://www.w3.org/2001/XMLSchema-instance. Any valid value for a namespace. http://www.w3.org/2001/XMLSchema-instance No
svg_dtd output In the case the SVG Doctype is a file, specifies whether, inside the SVG document, path to SVG DTD is absolute or relative. absolute or relative. absolute No
  publicID In the case the SVG Doctype is a URL, specifies the public ID of the Doctype. Any possible string for a public ID. - No
svg_schema namespace Specifies the SVG Schema namespace. It must be the same than the namespace specified by the Schema you use. Any valid value for a namespace. - No
  output In the case the SVG Doctype is a file, specifies whether, inside the SVG document, path to SVG DTD is absolute or relative. absolute or relative. absolute No
  xsi Specifies the SVG document namespace. Generally http://www.w3.org/2001/XMLSchema-instance. Any valid value for a namespace. http://www.w3.org/2001/XMLSchema-instance No

Notes : if you specify the size of the resulting graphic with tag graphic, the proportion of the graphic will be kept. Batik will ignore this size information, so TAXI will since it is based on Batik.

3.2. Examples

We will do the same things than previously (with the parameters typed directly in the console).

3.2.1. Example 1

For this first example, we will use the minimum required number of parameters.

Save the following XML document as editor/XML/XML/parametersCD.xml :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">

    <parameters>
      <xml_in>ex1.cd</xml_in>
      <xsl>CDtoGRP.xsl</xsl>
      <defs>definitionsCD.def</defs>
      <grp_dtd>../grp.dtd</grp_dtd>
      <svg_dtd>../grp.dtd</svg_dtd>
    </parameters>


Open a console and go to directory editor/XML/XML. Type the following command :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml parametersCD.xml


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp has been generated in directory editor/XML/XML. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg has been generated in directory editor/XML/XML too. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


3.2.2. Example 2

We will produce an absolute path for GRP DTD and a relative one for SVG DTD.

Modify editor/XML/XML/parametersCD.xml (changes are in bold, the absolute paths D:/editor/XML/grp.dtd and D:/editor/XML/svg.dtd are the ones I have to use on my Windows machine) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">

    <parameters>
      <xml_in>ex1.cd</xml_in>
      <xsl>CDtoGRP.xsl</xsl>
      <defs>definitionsCD.def</defs>
      <grp_dtd output="absolute">D:/editor/XML/grp.dtd</grp_dtd>
      <svg_dtd output="relative">D:/editor/XML/svg.dtd</svg_dtd>
    </parameters>


In the console, type the same command used for the previous example :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToGRP -xml parametersCD.xml


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "file:///D:/editor/XML/grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg has been generated in directory editor/XML/XML too. It looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


Note : if you specify a relative path like ../grp.dtd for tag grp_dtd, then, inside GRP document, the path to GRP DTD will automatically be relative.

3.2.3. Example 3

We will use a URL as Doctype for both GRP and SVG documents.

Modify editor/XML/XML/parametersCD.xml (changes are in bold, the absolute path D:/editor/XML/grp.dtd is the one I have to use on my Windows machine) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">

    <parameters>
      <xml_in>ex1.cd</xml_in>
      <xsl>CDtoGRP.xsl</xsl>
      <defs>definitionsCD.def</defs>
      <grp_dtd publicID="test">file:///D:/editor/XML/grp.dtd</grp_dtd>
      <svg_dtd publicID="-//W3C//DTD SVG 1.0//EN">http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd</svg_dtd>
    </parameters>


In the console, type the same command used for the previous example :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToGRP -xml parametersCD.xml


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp PUBLIC "test"
                         "file:///D:/editor/XML/grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.0//EN"
                         "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
    <svg height="186.0" width="308.0" x="0.0" y="0.0">
      ...
    </svg>


3.2.4. Example 4

We will specify the size of the resulting graphic.

Modify editor/XML/XML/parametersCD.xml (changes are in bold) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">

    <parameters>
      <xml_in>ex1.cd</xml_in>
      <xsl>CDtoGRP.xsl</xsl>
      <defs>definitionsCD.def</defs>
      <graphic width="30" height="30"/>
      <grp_dtd>../grp.dtd</grp_dtd>
      <svg_dtd>../svg.dtd</svg_dtd>
    </parameters>


In the console, type the same command used for the previous example :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToGRP -xml parametersCD.xml


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="30" preserveAspectRatio="xMidYMin" viewBox="0 0 308.0 186.0" width="30" x="0.0" y="0.0">
      ...
    </svg>


The graphic is really smaller (you will see the graphic bigger if you use Batik since attribute viewBox is ignored by Batik on the root tag) :

3.3. Overriding parameters's value on command line

When using an XML parameter document to pass parameters' value to the Transformer, you can override them on the command line, or even specify some on the command line that are not in the XML parameter document.

Let's have an example. Ensure that editor/XML/XML/parametersCD.xml is like this (the absolute path D:/editor/XML/svg.dtd is the one I have to use on my Windows machine) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE parameters SYSTEM "../parameters.dtd">

    <parameters>
      <xml_in>ex1.cd</xml_in>
      <xsl>CDtoGRP.xsl</xsl>
      <defs>definitionsCD.def</defs>
      <graphic width="30" height="30"/>
      <grp_dtd output="relative">D:/editor/XML/grp.dtd</grp_dtd>
      <svg_dtd>../svg.dtd</svg_dtd>
    </parameters>


In the console, type the following command :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerXMLToSVG -xml parametersCD.xml -grp_dtdoutput absolute -width 150


You should obtain the following output :

    Applying XSL transformations to file ex1.cd
    Parsing file definitionsCD.def
    Generating GRP file ex1.cd.grp
    Creating SVG document
    Generating SVG file ex1.cd.svg


Document ex1.cd.grp looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "file:///D:/editor/XML/grp.dtd">
    <grp xmlns:java="http://xml.apache.org/xslt/java">
      ...
    </grp>


Document ex1.cd.svg looks like this :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE svg SYSTEM "../svg.dtd">
    <svg height="30" preserveAspectRatio="xMidYMin" viewBox="0 0 308.0 186.0" width="150" x="0.0" y="0.0">
      ...
    </svg>


In the XML parameter document, we specified a relative path for GRP DTD and a graphic 30 wide. We overrided these values on the command line. We can see that the path to GRP DTD is absolute and that the width of the graphic is 150.
