The intermediary document : Boxes structure (box ebox)

1. Description

An ebox is a final box with no content. It is empty. What is this box intended for ? This box is particulary usefull when you want to place some background in the graphic where there is no special content to place, for instance some text.

You can specify attributes for a non-final box. Here are the different attributes you can specify for such a box :

Attribute name Description Allowed values Default value Mandatory
background Specifies the background to apply to that tbox. Background defined in the definitions document. - No
height Specifies the height of the box. Real values starting at 0. 0 No
id Identifier of that tbox. Any value (must be unique inside the whole document). - No
width Specifies the width of the box. Realvalues starting at 0. 0 No

Note : background and id attributes are common to every box.

2. Example

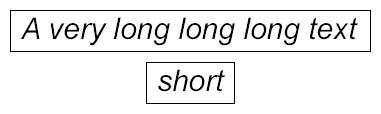

In this chapter, the graphic we want to produce is the following :

2.1. First step

The idea is to place the text and use a background to produce the black rectangle that surrounds it.

Save the code below under editor/XML/Examples/ebox1.grp :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp>
      <vbox>
        <spring minSize="10"/>

        <hbox>
          <spring minSize="10"/>

          <vbox background="blackRectangle">
            <spring minSize="5"/>

            <hbox maxSize="fitToChildren">
              <spring minSize="5"/>
              <tbox fontSize="30" fontStyle="italic">A very long long long text</tbox>
              <spring minSize="5"/>
            </hbox>

            <spring minSize="5"/>
          </vbox>

          <spring minSize="10"/>
        </hbox>

        <spring minSize="10"/>

        <hbox>
          <spring minSize="10"/>

          <vbox background="blackRectangle">
            <spring minSize="5"/>

            <hbox maxSize="fitToChildren">
              <spring minSize="5"/>
              <tbox fontSize="30" fontStyle="italic">short</tbox>
              <spring minSize="5"/>
            </hbox>

            <spring minSize="5"/>
          </vbox>

          <spring minSize="10"/>
        </hbox>

        <spring minSize="10"/>
      </vbox>
    </grp>


Add the definition blackRectangle in the definitions document editor/XML/Examples/examples.def :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE definitions SYSTEM "../definitions.dtd">

    <definitions>
      <definition id='back' width='10' height='10'>
        <rect x='0' y='0' width='10' height='10' style='fill:yellow'/>
      </definition>

      <definition id='blackRectangle' width='10' height='10'>
        <rect x='0' y='0' width='10' height='10' style='fill:none; stroke:black'/>
      </definition>

      <definition id='text' width='60' height='20'>
        <rect x='0' y='0' rx="10" ry="10" width='60' height='20' style='fill:rgb(3,189,147); opacity:0.7'/>
      </definition>
    </definitions>


In a console, change to directory editor/XML/Examples (if not already done), and then type :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerGRPToSVG -grp_in ebox1.grp -defs examples.def -svg_dtd ../svg.dtd


You should see the following output :

    Parsing file examples.def
    Parsing file ebox1.grp
    Creating SVG document
    Generating SVG file ebox1.svg

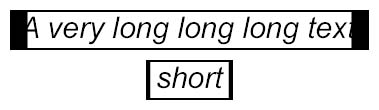

And obtain this graphic :

2.2. First step explained

The graphic we obtained is is not exactly what we expected ! What happened ? Why does it look so weird ? This is simple. As explained in the previous chapter, a background always fits, by stretching, the size of the box it is applied to. A scale factor is applied to the background on the X axis, and another one on the Y axis. These factor values depend on the size of the box and the size of the background definition. Thus, the background blackRectangle will never look the same applied to different boxes.

Does this mean that it is impossible to surround text with a black rectangle ? No, but we will have to use another approach. Instead of trying to draw the rectangle as one piece, we will cut it into 4 pieces : 2 horizontal lines (one on top of the text, the other one on bottom), and 2 vertical lines (one on left of the text, the other one on right). This is where ebox comes to help us : we will place a background where there is no special content.

2.3. Second step

Save the code below under editor/XML/Examples/ebox2.grp (we don't use anymore the background blackRectangle, and the code added over the previous example ebox1.grp is shown in bold) :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE grp SYSTEM "../grp.dtd">
    <grp>
      <vbox>
        <spring minSize="10"/>

        <hbox>
          <spring minSize="10"/>

          <vbox background="blackPoint">
            <ebox width="1"/>
            <spring/>
          </vbox>

          <vbox>
            <hbox background="blackPoint">
              <ebox height="1"/>
              <spring/>
            </hbox>

            <spring minSize="5"/>

            <hbox maxSize="fitToChildren">
              <spring minSize="5"/>
              <tbox fontSize="30" fontStyle="italic">A very long long long text</tbox>
              <spring minSize="5"/>
            </hbox>

            <spring minSize="5"/>

            <hbox background="blackPoint">
              <ebox height="1"/>
              <spring/>
            </hbox>
          </vbox>

          <vbox background="blackPoint">
            <ebox width="1"/>
            <spring/>
          </vbox>

          <spring minSize="10"/>
        </hbox>

        <spring minSize="10"/>

        <hbox>
          <spring minSize="10"/>

          <vbox background="blackPoint">
            <ebox width="1"/>
            <spring/>
          </vbox>

          <vbox>
            <hbox background="blackPoint">
              <ebox height="1"/>
              <spring/>
            </hbox>

            <spring minSize="5"/>

            <hbox maxSize="fitToChildren">
              <spring minSize="5"/>
              <tbox fontSize="30" fontStyle="italic">short</tbox>
              <spring minSize="5"/>
            </hbox>

            <spring minSize="5"/>

            <hbox background="blackPoint">
              <ebox height="1"/>
              <spring/>
            </hbox>
          </vbox>

          <vbox background="blackPoint">
            <ebox width="1"/>
            <spring/>
          </vbox>

          <spring minSize="10"/>
        </hbox>

        <spring minSize="10"/>
      </vbox>
    </grp>


Add the definition blackPoint in the definitions document editor/XML/Examples/examples.def :

    <?xml version="1.0" encoding="ISO-8859-1"?>
    <!DOCTYPE definitions SYSTEM "../definitions.dtd">

    <definitions>
      <definition id='back' width='10' height='10'>
        <rect x='0' y='0' width='10' height='10' style='fill:yellow'/>
      </definition>

      <definition id='blackRectangle' width='10' height='10'>
        <rect x='0' y='0' width='10' height='10' style='fill:none; stroke:black'/>
      </definition>

      <definition id='blackPoint' width='1' height='1'>
        <line x1='0' y1='0' x2='1' y2='1' style='stroke:black'/>
      </definition>

      <definition id='text' width='60' height='20'>
        <rect x='0' y='0' rx="10" ry="10" width='60' height='20' style='fill:rgb(3,189,147); opacity:0.7'/>
      </definition>
    </definitions>


In a console, change to directory editor/XML/Examples (if not already done), and then type :

    java -cp ../../lib/taxi.jar fr.loria.taxi.transformer.TransformerGRPToSVG -grp_in ebox2.grp -defs examples.def -svg_dtd ../svg.dtd


You should see the following output :

    Parsing file examples.def
    Parsing file ebox2.grp
    Creating SVG document
    Generating SVG file ebox2.svg


And obtain this graphic :

2.4. Second step explained

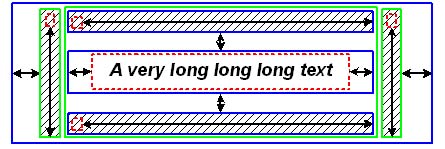

This is what we did (boxes on which the background blackPoint is applied are shown hatched on the figure below) :

Vertical boxes are shown in green, horizontal in blue, and final boxes in red.

The code looked like that for an vertical box for instance :

    <vbox background="blackPoint">
      <ebox width="1"/>
      <spring/>
    </vbox>


We define a vertical box with the blackPoint background. This background is actually a point that will stretch to fit the size of the box, so that the box will produce a black rectangle on the SVG graphic.

A vertical box is non-final, that is to say that it must contain at least one box. So we place an ebox inside it. What matters is the width of this ebox as it will determine the width of its parent box (the vertical box) on which is tied a background. Thus, the width of the rectangle produced on the graphic is the width of this ebox. We decide to set it to 1.

We don't know the height the ebox must have not to generate warnings during the transformation. Indeed, the vbox containing our ebox is itself contained by a hbox. All the boxes contained by this hbox must have the same height. That means that our vbox must be stretchable. This is why we place a spring inside the vbox containing the ebox.
